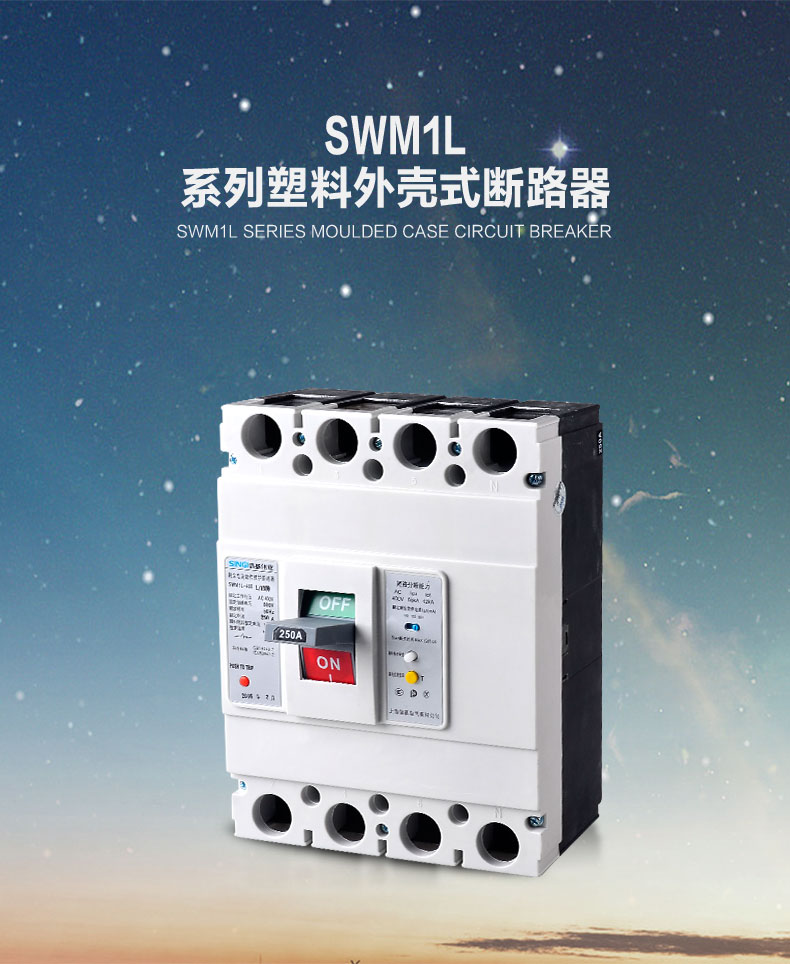

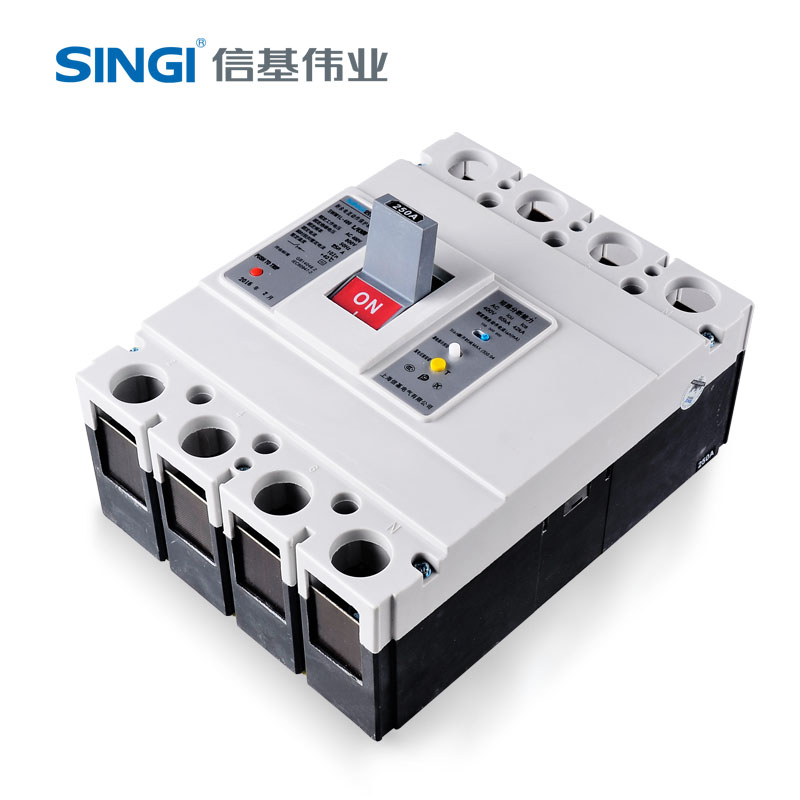

SWM1L Residual Current Protection Circuit Breaker

SWM1L residual current protection circuit breaker is suitable to the power distributionsystem of AC50Hz,rated voltage400V,rated current to 800Ato supply indirect contact protection and preventthefire caused bythe earth faultcurrentbecause ofthe insulation damaged of equipment. It also can be used to distribute power and protect circuit and overload, shortcircuit, undervoltage, also non-frequenttransferofcircuitornon frequent startingofmotor.
Estado:
Núm.:
Parâmetros do produto

APLICAÇÃO

O disjuntor de proteção contra corrente residual SWM1L é adequado ao sistema de distribuição de energia de AC50Hz, tensão nominal 400V, corrente nominal até 800A, para fornecer proteção contra contato indireto e prevenir o incêndio causado pela corrente de falha de terra devido ao dano da isolação do equipamento. Também pode ser usado para distribuir energia e proteger o circuito contra sobrecarga, curto-circuito, subtensão, e também para transferência não frequente de circuito ou partida não frequente de motor.

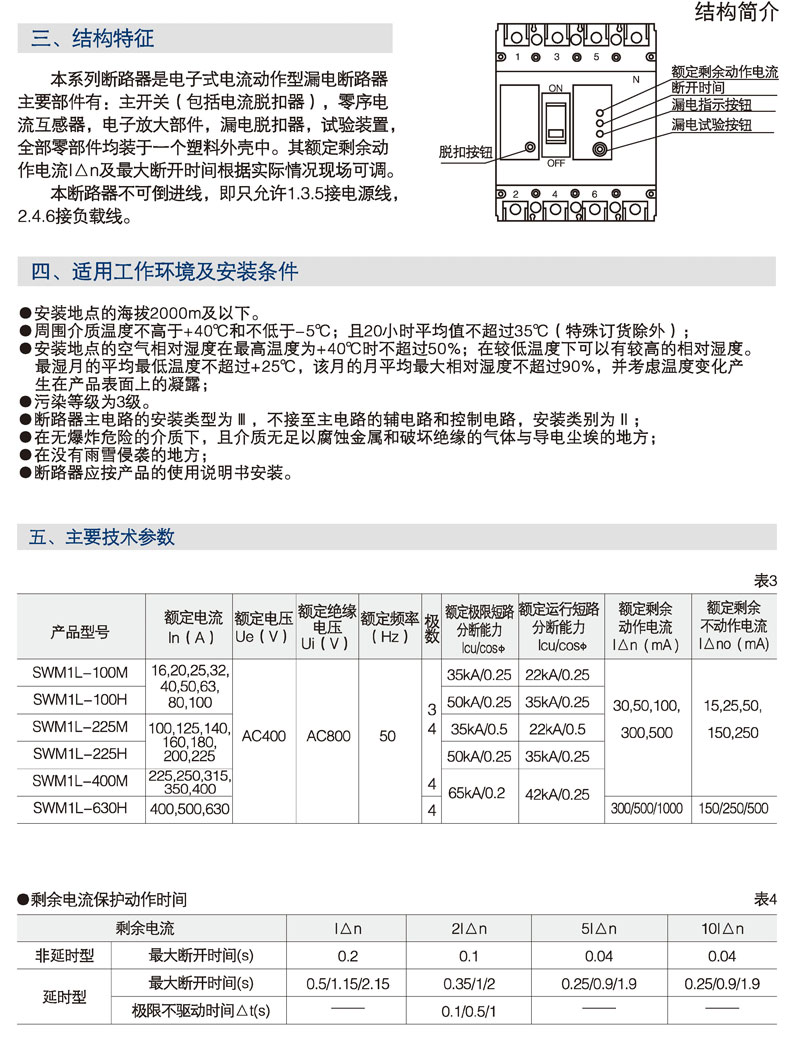

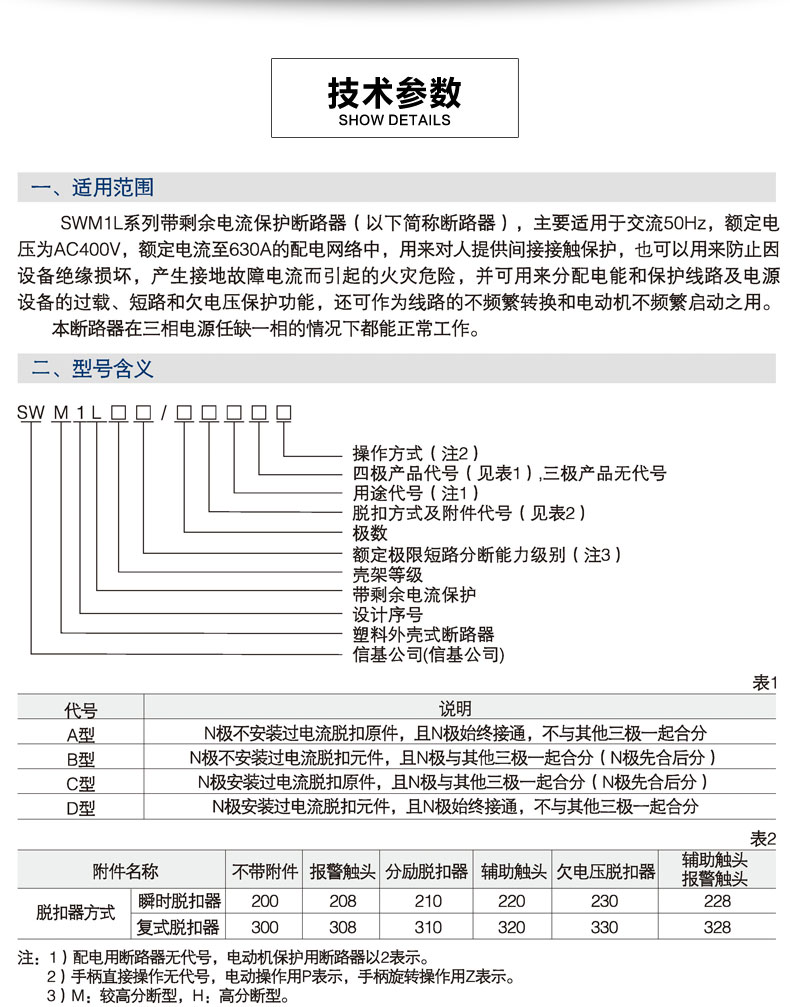

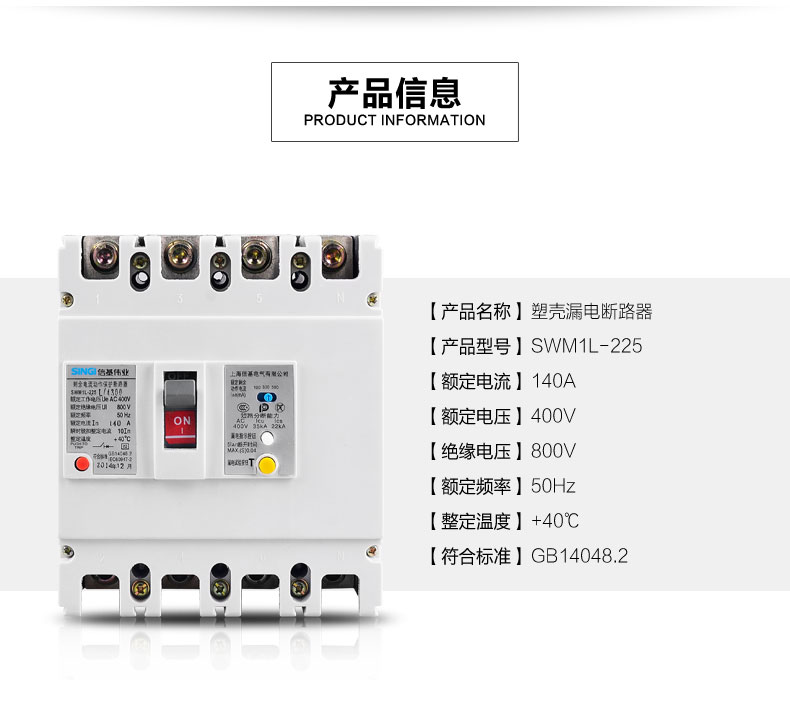

PARÂMETROS TÉCNICOS



ModeloCorrente nominal In(A)Tensão nominal(V)Tensão de isolamento nominal(V)Frequência nominal(Hz)Capacidade de interrupção de curto-circuito última nominalCapacidade de interrupção de curto-circuito de operação nominalCorrente residual de operação nominalCorrente residual de não operação nominal
SWM1L-100M16,20,25,32,40,50,63,80,100AC400AC80050Hz35ka/0.2522ka/0.2530,50,100,300,50015,25,50,150,250
SWM1L-100H50ka/0.2535ka/0.25
SWM1L-225M100,125,140,160,180,200,22535ka/0.522ka/0.5
SWM1L-225H50ka/0.2535ka/0.25
SWM1L-400M225,250,315,350,40065ka/0.242ka/0.25
SWM1L-630H400,500,630300/500/1000150/250/500




SWM1L Residual Current Protection Circuit Breaker

SWM1L Residual Current Protection Circuit BreakerSWM1L Residual Current Protection Circuit BreakerSWM1L Residual Current Protection Circuit BreakerSWM1L Residual Current Protection Circuit BreakerSWM1L Residual Current Protection Circuit BreakerSWM1L Residual Current Protection Circuit BreakerSWM1L Residual Current Protection Circuit BreakerSWM1L Residual Current Protection Circuit BreakerSWM1L Residual Current Protection Circuit BreakerSWM1L Residual Current Protection Circuit BreakerSWM1L Residual Current Protection Circuit Breaker
